Product Application:
* Hot live water for shower all the year around
* House heating in winter
Product Description:

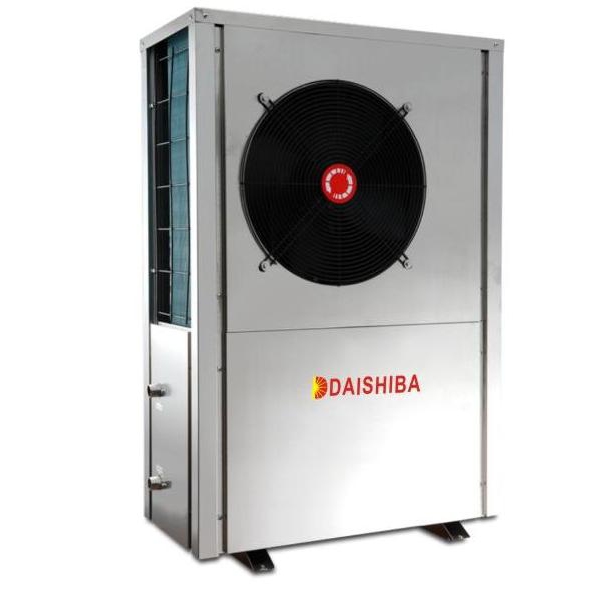

This series adopts high efficiency tube-in-shell heat exchanger and built-in water pump inside the heat pump, whch ensures not only high efficient performance of the system but also easy installation. It can supply domestic hot water and house heating with underfloor heating, fan coil units or radiators.
The heat pump can control the three valves to realize the switching between sanitary hot water and heating.
Product Features:
n Copeland Scroll Compressor
n Water Pump Built In
n Automatic Defrosting
n Intelligent Control
n Safe, Reliable, Stable Running
n Long Working Life
n Low Noise & Viibration
n Easy To Install & Operate
FAQ:
Q1: Are you a factory or trading company?
A: We are the factory, and especially R&D, manufacturer and sell various heat pump euipment. We have engaged in the heat pump R&D and production over 10 years.
Q2: How to find a heat pump suitable for my product?
A: a. Tell us about your product details;
b. What functional heat pump products do you need;
c. Tell us your local minimum ambient temperature and maximum ambient temperature to recommend products that meet your needs;
d. Power supply specifications and special requirements used in your country.
Q3: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, We provide installation instructions and 24-hour online service and assist you till the end.
Q4: What is the payment term?
A: 30% T/T deposit and 70% T/T balance payment before shipping (If you purchase a sample that requires 100% payment, In order to avoid second payment, bank deduction fees will be generated again). Online trade assurance order, L/C, or as negotiated terms with clients.
Q5: How long is the warranty time?
A: 1 years of warranty. In guarantee period, if spare part broken, we will send you the parts free and we will pay the express fee. And please send us the spare parts back. when machine is out of guarantee period, we will provide you the spare parts by charge.
Q6: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will send you the pictures for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q7: We are afraid you won't send us the machine after we send you the money?
A: Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality..
Q8: Why we should choose your company?
A: We are a professional heat pump manufacturer over 10 years, and we provide better after-sales service. We guarantee no risk for our deal.
| Model | Unit | DRSPS- 10HB |
DRSPS- 15HB |
DRSPS- 18HB/3 |
DRSPS- 21HB/3 |
DRSPS- 10HA |
DRSPS- 15HA |
DRSPS- 18HA/3 |
DRSPS- 21HA/3 |
| HP | 3 | 4.5 | 5 | 6 | 3 | 4.5 | 5 | 6 | |
| Heating area | m2 | 50~75 | 75~110 | 75~110 | 110~150 | 50~75 | 75~110 | 75~110 | 110~150 |
| Hot water capacity | kW | 11.2 | 14.9 | 18.6 | 21.4 | 11.6 | 14.9 | 19.3 | 21.7 |
| COP | W/W | 4.31 | 4.24 | 4.24 | 4.12 | 4.38 | 4.43 | 4.39 | 4.21 |
| *Heating capacity | kW | 8.5 | 12.8 | 14.8 | 17 | 9.3 | 12.4 | 15.7 | 17.6 |
| *COP | W/W | 4.01 | 4.06 | 4.05 | 4.02 | 4.17 | 4.22 | 4.18 | 4.01 |
| **Heating capacity | kW | 7.9 | 12 | 14 | 16.2 | 8.6 | 11.6 | 15 | 16.5 |
| **COP | W/W | 3.21 | 3.24 | 3.26 | 3.21 | 3.23 | 3.27 | 3.24 | 3.07 |
| Power supply | V/Hz/Ph | 220~240V/50Hz/1Ph | 3801~415V/50Hz/3Ph | 220~240V/50Hz/1Ph | 3801~415V/50Hz/3Ph | ||||
| Compressor type | / | Scroll | |||||||
| Number of compressors | / | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Fan discharging | / | Horizontal | |||||||
| Fan quantity | / | 1 | 2 | 2 | 2 | 1 | 2 | 2 | 2 |
| Ambient temperture | ℃ | -7℃~43℃ | -25℃~43℃ | ||||||
| Refrigerant | / | R22/R407C | R22/R410A | ||||||
| Noise | dB(A) | 59 | 62 | 63 | 63 | 59 | 62 | 63 | 63 |
| Dimension | mm | 800*400*1220 | 1000*470*1180 | 1110*530*1260 | 1110*530*1260 | 800*400*1220 | 1000*470*1180 | 1110*530*1260 | 1110*530*1260 |
| Net weight | kg | 110 | 140 | 155 | 170 | 115 | 135 | 160 | 165 |
| Testing condition: | Hot water: Ambient temp.(DB/WB)=20℃/15℃, Water temp.=15℃~55℃ | ||||||||
| *Heating:Ambient temp.(DB/WB)=7℃/6℃, Water temp.(In/Out)=30℃/35℃ | |||||||||
| **Heating:Ambient temp.(DB/WB)=7℃/6℃, Water temp.(In/Out)=40℃/45℃ | |||||||||
1. The refrigerant passes into the evaporator and heat energy from the outside air passes over the evaporator causing the refrigerant to increase in pressure and change to warm vapor.
2. This warm vapor then enters the compressor where its temperature increase as a result of the compression process and turns into a hot gas.
3. The hot refrigerant gas is then condensed as it passes across one side of a plate heat exchanger, and this is transferred via the primary water circuit to heat up the water tank.
4. Despite dropping in temperature, the cool vapor still has a high pressure and to reduce this pressure the vapor passes through an expansion valve. This cause the pressure to drop and the temperature lowers, returning the refrigerant to its initial state of cool low pressure liquid.
This process is repeated.
It is only the refrigerant that passes through this cycle; the water is heated as it travels through the plate heat exchanger. The heat energy from the refrigerant passes through the plate heat exchanger to the cooler water which increase in temperature. This heated water enters the home heating circuit and also be used to provide domestic hot water via a hot water tank.
